TS450
TS450 - Image 2
TS450 - Image 3

TS450

Code Engine Type Power Weight (kg)

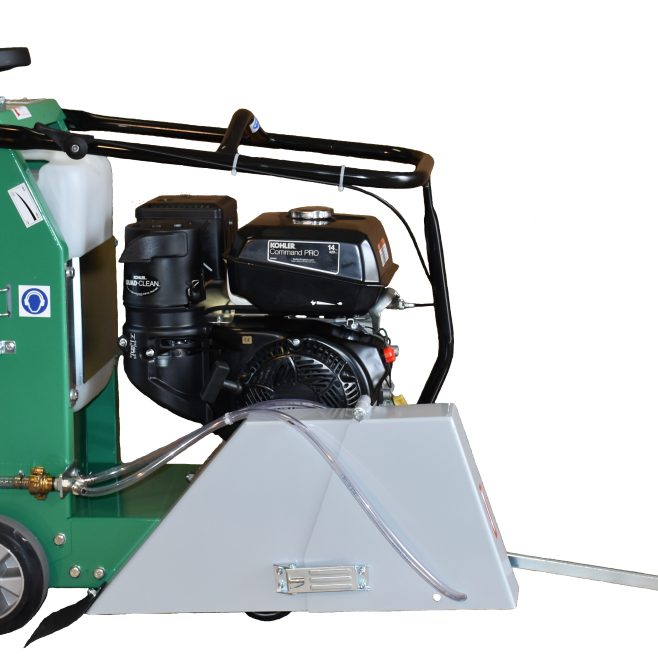

CH440-3234 Kohler petrol

10,5 kW – 14 HP

 118

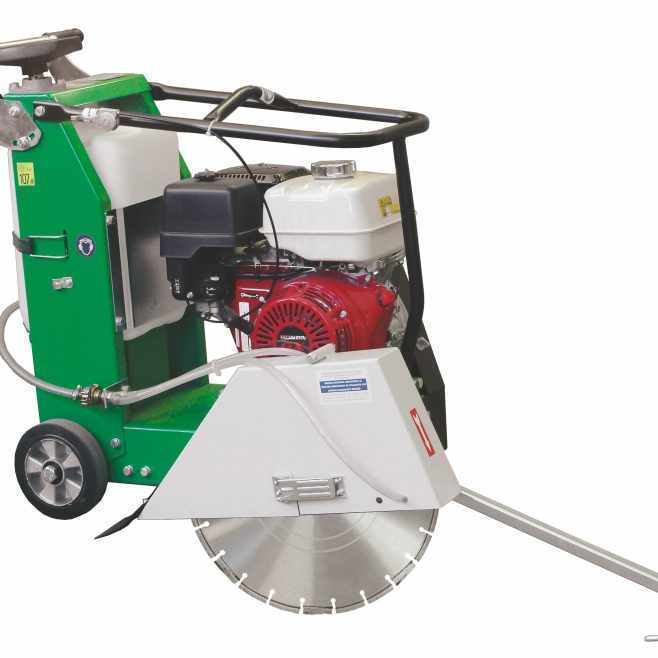

GX390 Honda petrol

8,7 kW – 11,7 HP

 116

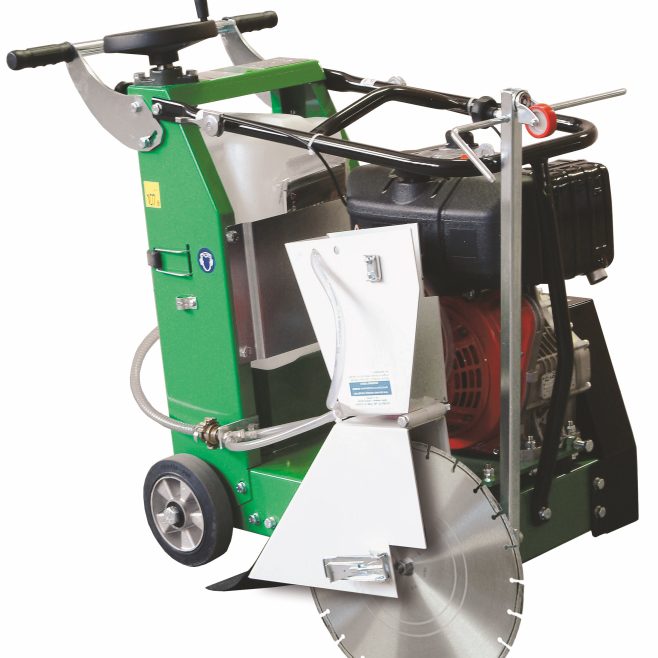

KD15 440 Kohler Diesel (electric starter)

7,5 kW – 10,1 HP

 132

400V-50Hz Electric Three-Phase

4 kW – 5,5 HP

 102

L100N6CF1T1AA Yanmar Diesel (recoil starter)

7,4 kW – 10 HP

 140
Data sheet

DESCRIPTION
Compact and handy machine, it is ideal for cutting ducts for laying pipes, electrical cables and telephone cables on concrete and asphalt floors.

Max diameter disc (mm)500
Disc hole diameter (mm)25,4
Max cutting depth (mm)190
Plastic water tank capacity (l)30
Sound emission level (dB)107
Dimensions (LxWxH in mm)950x620x900

Recoil or electric starter
Operating advancement by hand
Cutting depth adjustment by handwheel with locking system
Depth indicator
Adjustable handle
Engine guard with attachment point for lifting
Blade guard that can be opened for approaching the cut to the wall
Disc water cooling system on both sides
Rubber shock-absorber to reduce work vibrations
Parking brake
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
Ø400 mm or Ø450 mm blade guard to suck up dust in dry cutting
Red emergency STOP botton
Semi-automatic advancement kit with handwheel
STANDARD KIT
Technical documentation and CE certificate
