TS140

Code Engine Type Power Weight (kg)

CH440-3234 Kohler petrol

10,5 kW – 14 HP

167

GX390 Honda petrol

8,7 kW – 11,7 HP

165

KD15 440 Kohler Diesel (electric starter)

7,5 kW – 10,1 HP

186

400V-50Hz Electric Three-Phase

5,5 kW – 7,5 HP

151

L100N6CF1T1AA Yanmar Diesel (recoil starter)

7,4 kW – 10 HP

176

DESCRIPTION

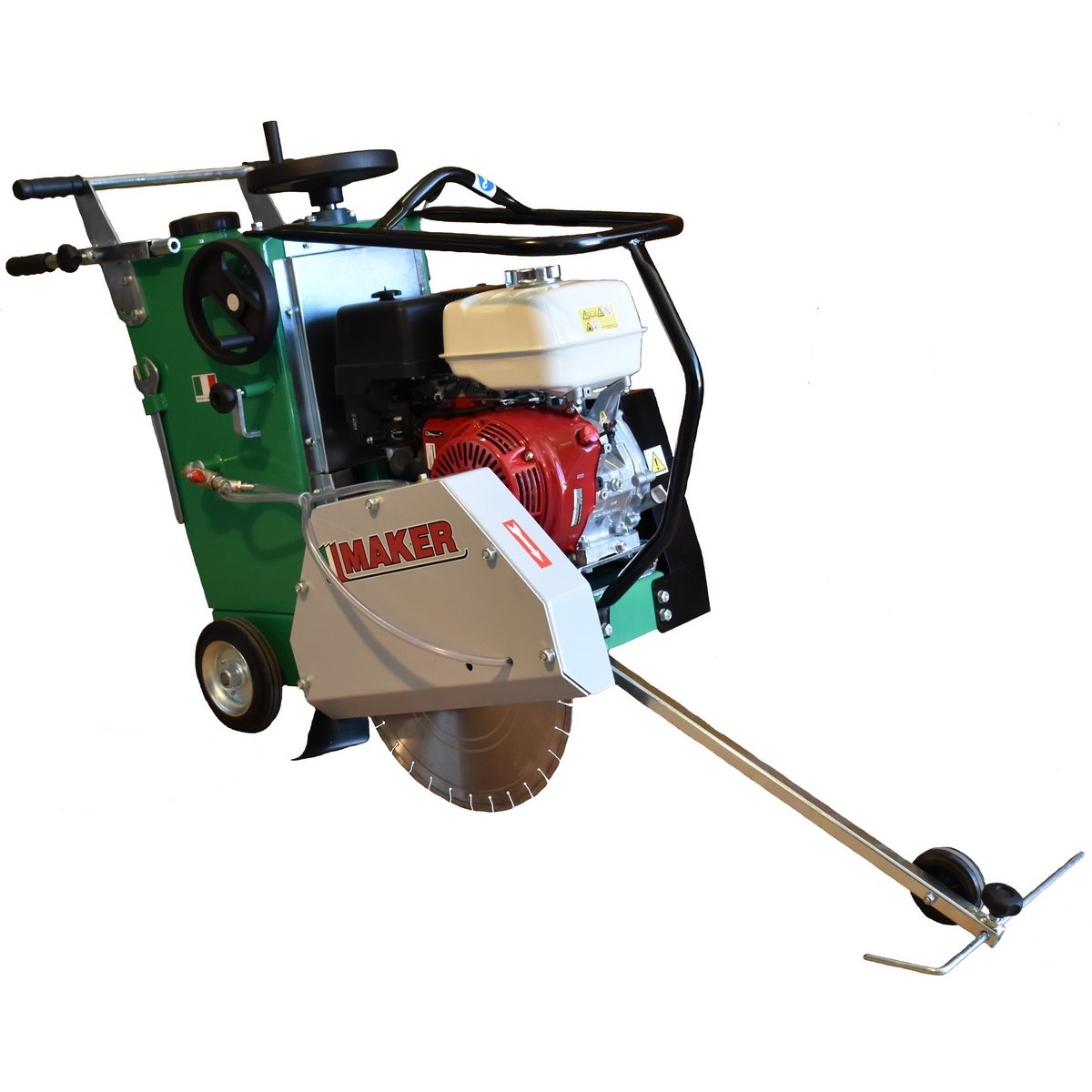

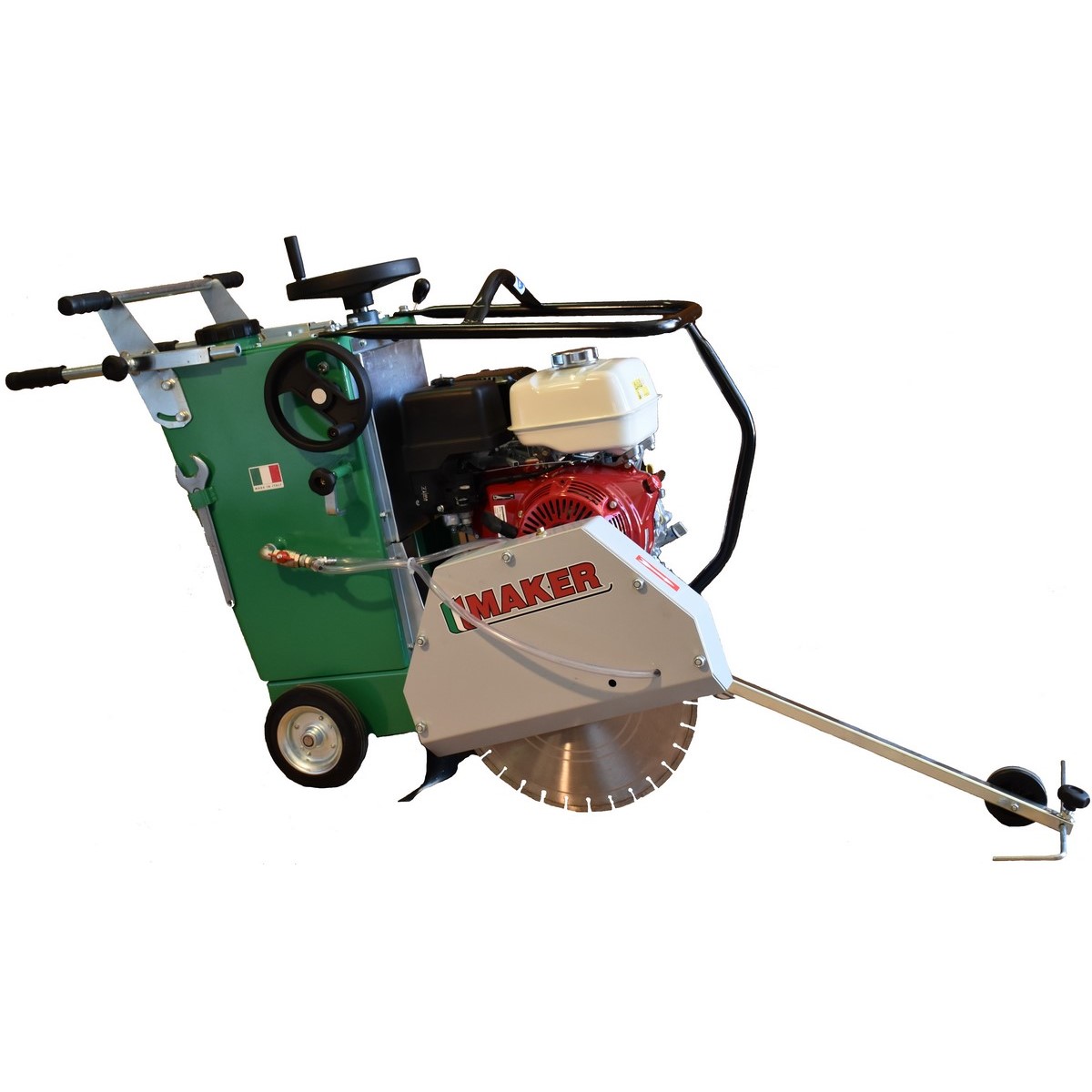

Compact and handy machine but heavier, it is ideal for cutting ducts for laying pipes, electrical cables and telephone cables on concrete and asphalt floors.

Max diameter disc (mm)500
Disc hole diameter (mm)25,4
Max cutting depth (mm)185
Steel cooling water tank capacity (l)50
Sound emission level (dB)109
Dimensions (LxWxH in mm)900x640x950

Recoil or electric starter
Semiautomatic advancement by hand
Cutting depth adjustment by handwheel with locking system
Double adjustable handle
Engine guard with attachment point for lifting
Disc water cooling system on both sides
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
Lateral disc protection
STANDARD KIT
Technical documentation and CE certificate
