TP700/725

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

3KW – 4HP

212

400V-50Hz Electric Three-Phase

4kW – 5,5 HP

238

DESCRIPTION

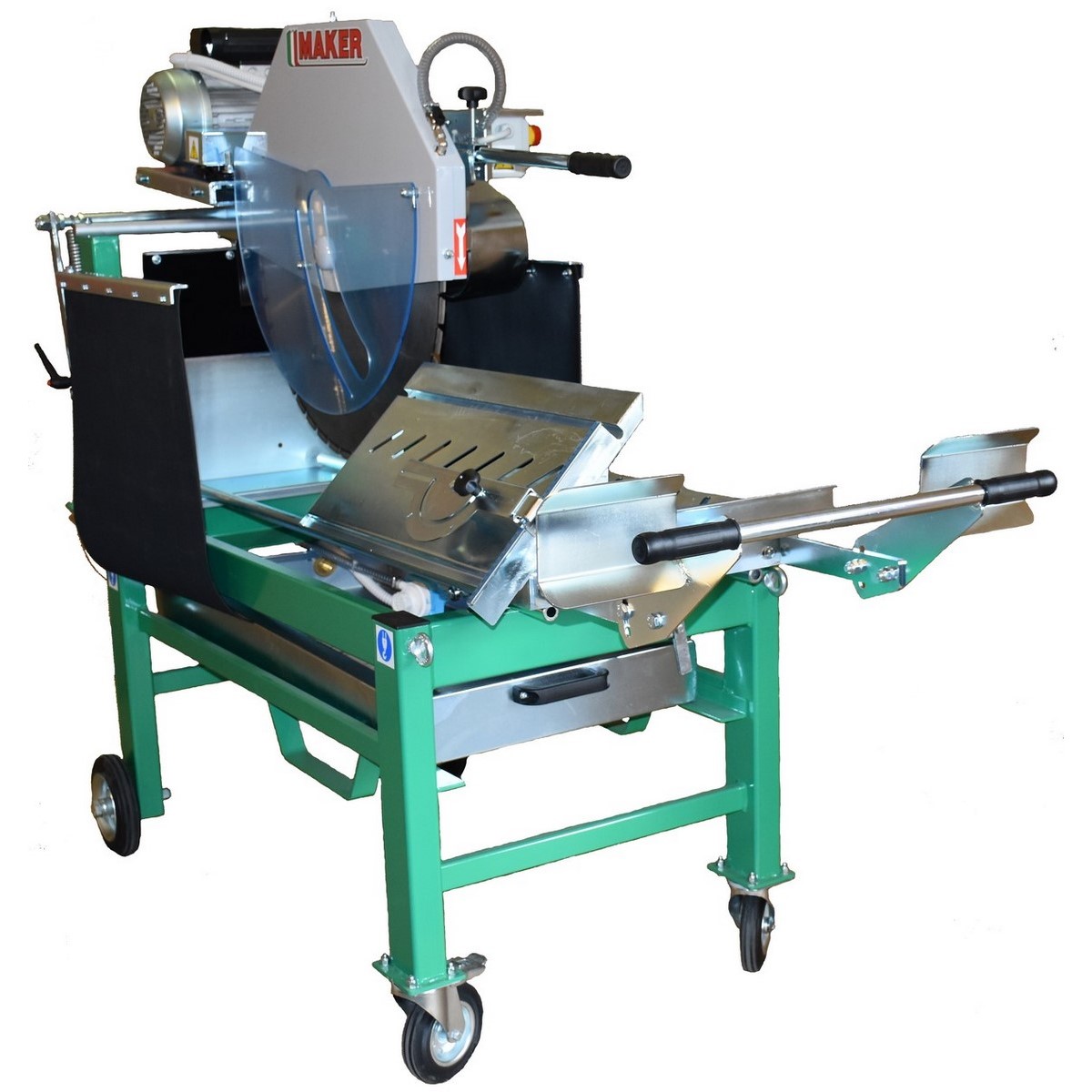

The MAKER pendular line sawing machine model TP700 / 725 is very compact and easily maneuverable but with superior performance in terms of power and cutting speed for large stone blocks, concrete, refractories, etc. The belt drive allows the maximum efficiency of the engine in continuous service. It has a tubular steel frame mounted on four wheels with a locking device to facilitate maneuvering on site. It has back and side protection against water and cutting residues. It is equipped with a removable 50-liter galvanized tub for easy cleaning. Manual advancement of the trolley that runs on watertight bearings with adjustable and safe handle.

Max blade diameter (mm)700
Blade hole diameter (mm)25,4
Max cutting depth (mm)290
Cutting length (mm)600
Sheet tub capacity (l)50
Sound emission level (dB)112
Dimensions (LxWxH in mm)1470x900x1600

Belt drive
Water cooling system on the front of the blade to avoid any risk of overheating
Handle to adjust the blade height for cutting
Back and side protection against water and cutting residues
Galvanized and sliding worktop with adjustable handle
360° adjustable square
50 liter removable galvanized tub
Immersion electric pump
Attachment points for lifting
OPTIONAL
Blade guard Ø 725 mm (H=300 mm)
Trolley with tilt from 0 to 45°
STANDARD KIT
Technical documentation and CE
