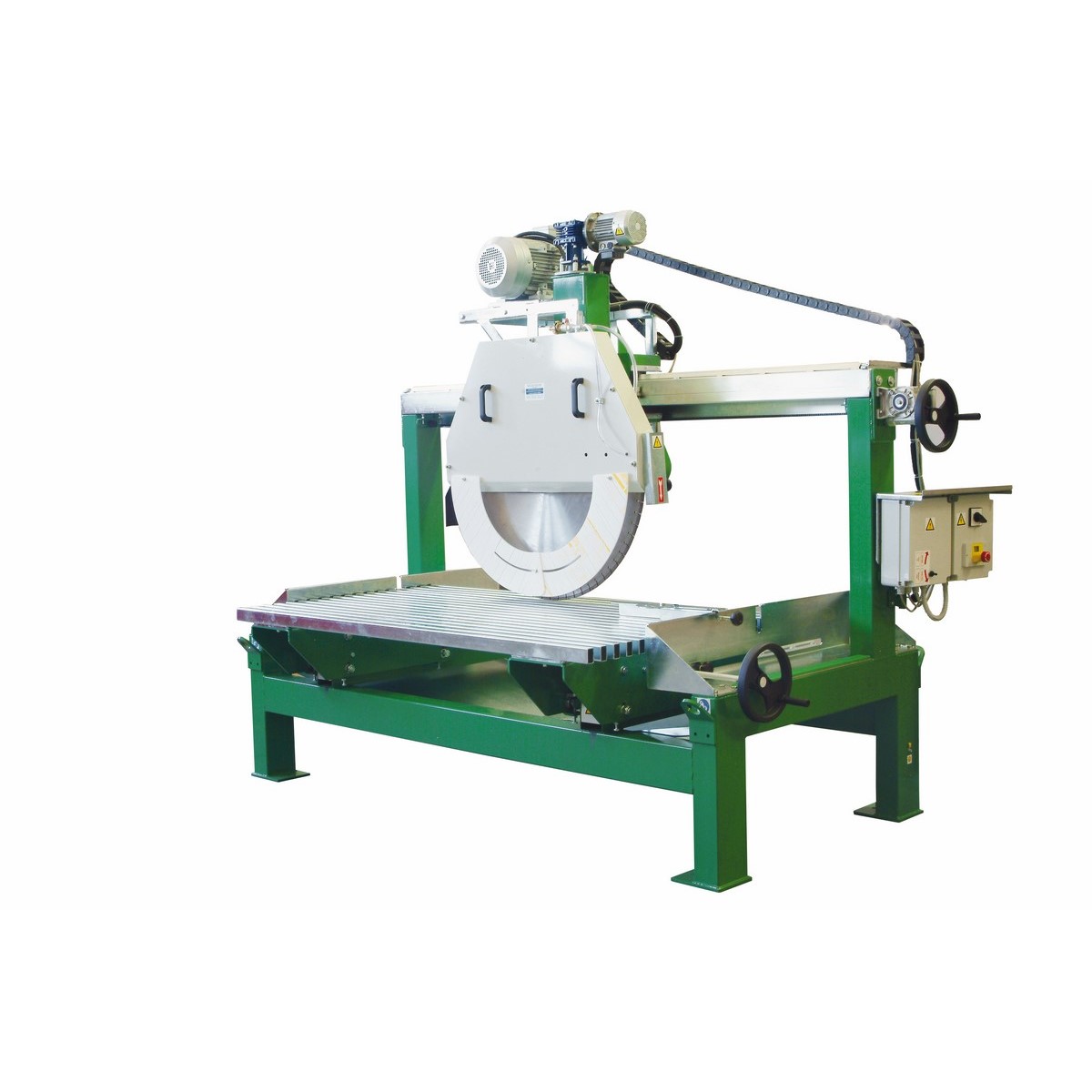

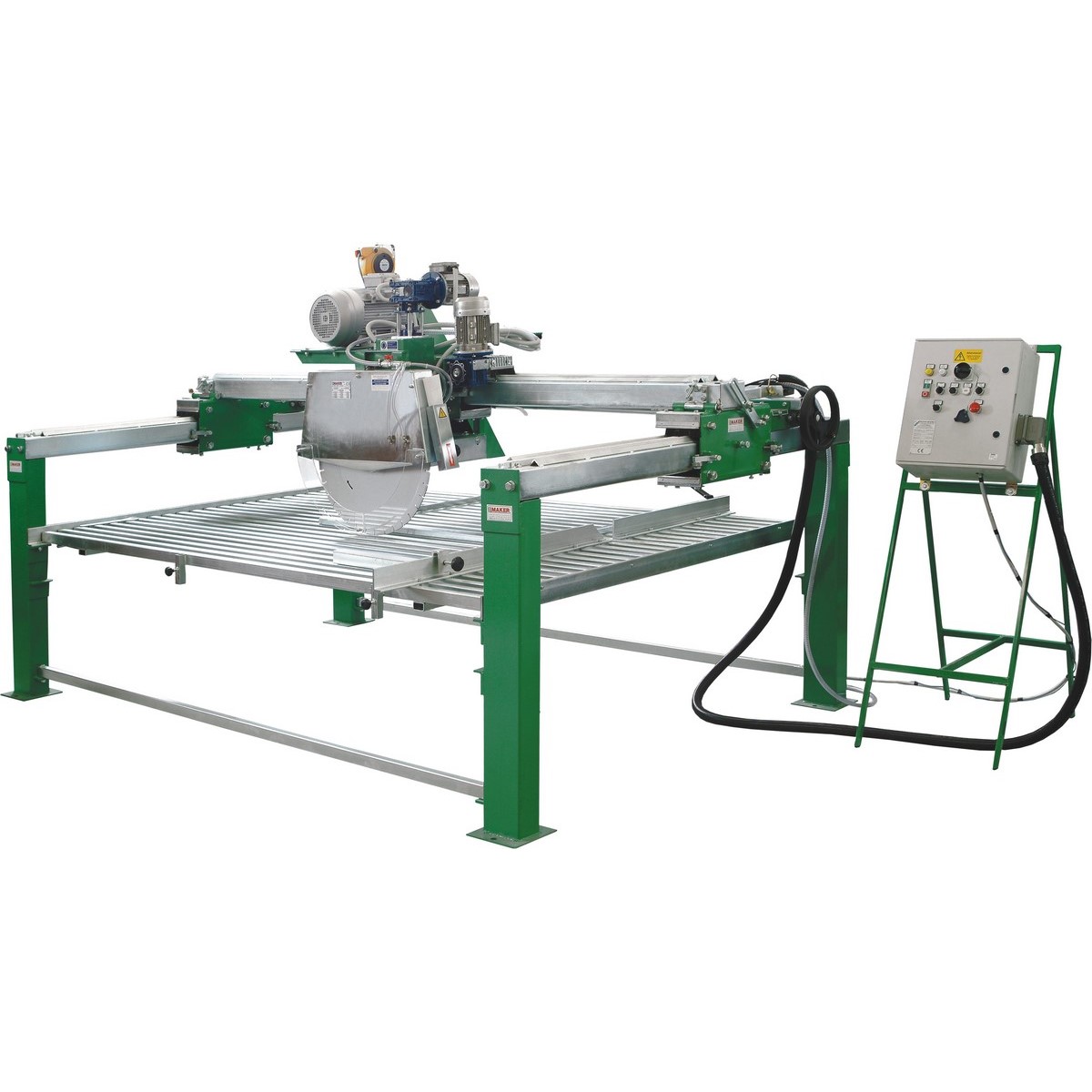

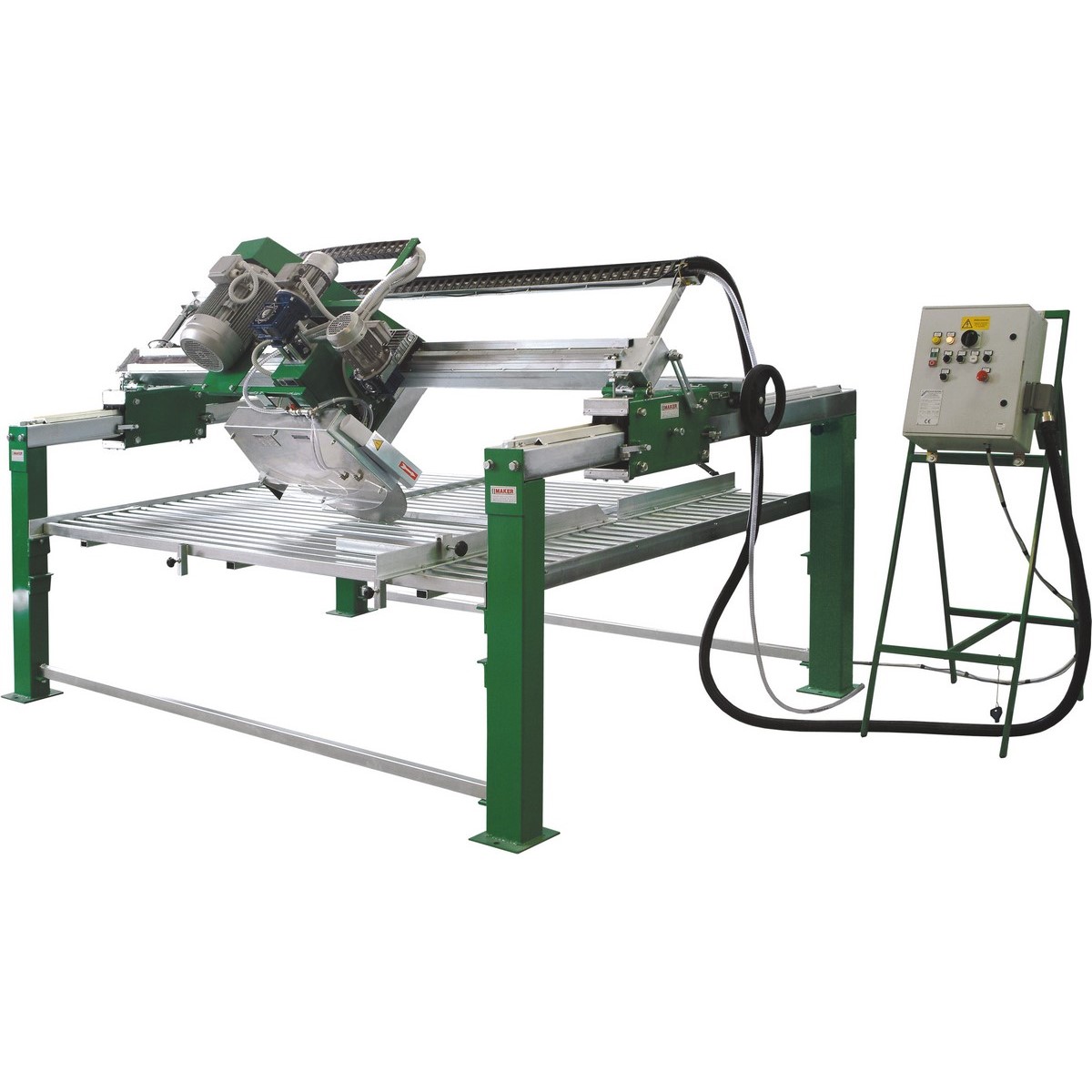

STR400/STR500/STR3000

Code	Engine Type	Power	Weight (kg)
STR400 0414071	400V-50Hz Electric Three-Phase	9,3 – 11 KW	451
STR500 0414075	400V-50Hz Electric Three-Phase	11 KW	750
STR3000 041003	400V-50Hz Electric Three-Phase	7,5 – 11 KW	1200

Data sheet

	STR400	STR500	STR3000
Max blade diameter (mm)	1000	1000	700/1000
Blade hole diameter (mm)	25,4	25,4	25,4
Max cutting depth (mm)	420	410	290/410
Cutting length (mm)	1200	1200	2200/2000

Belt drive
Automatic advancement with inverter for STR400
Semi-automatic and automatic advancement (STR500-STR3000)
Mobile worktop (500mm on the right – 500mm on the left) with handwheel for STR500
Longitudinal and transverse displacement for STR3000
STANDARD KIT
Technical documentation and CE
