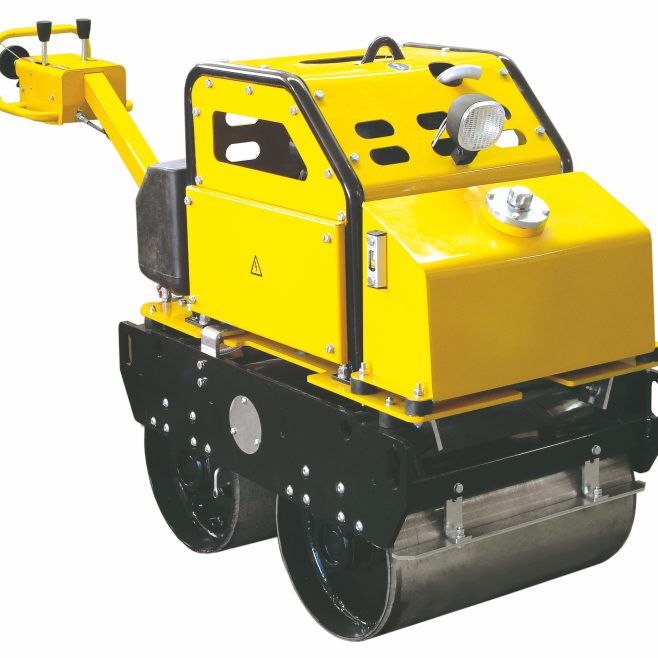

RVM940

Code Engine Type Power Weight (kg)

KD15 440 Kohler Diesel (electric starter)

7,5 kW – 10,1 HP

910

L100N6CA1TICAID Yanmar Diesel (electric starter – belt vibration)

7,4 kW – 10 HP

915

L100N6CA1TICAID Diesel Yanmar (electric starter – hydraulic vibration)

7,4 kW – 10 HP

918

DESCRIPTION
Ideal for compacting any type of terrain and asphalt. It has a double drum with a fully hydrostatic transmission system. The machine having no protruding parts can work very close to the sidewalks on both sides and in small spaces. The high centrifugal force makes it suitable to replace even heavier machines with the same efficiency and greater maneuverability.

Roller diameter (mm)402
Roller width (mm)700
Edge height (mm)230
Centrifugal force (kN)26
Frequency (Hz)65
Speed (forward gear) (km/h)0÷5
Speed (reverse gear) (km/h)0÷2,5
Depth (cm)30÷45
Water tank capacity (l)30
Sound emission level (dB)105
Dimensions (LxWxH in mm)1250x750x1800

Folding and cushioned steering tiller to reduce vibrations
Handle equipped with safety device, emergency lever, throttle lever and lever that operates progressive forward or reverse
Hydrostatic transmission with progressive speed control forward and reverse at reduced speed
Central attachment point plus 4 side eyelets for lifting and transport
Lighthouse for night work or in work environments with poor visibility
Oil level indicator
Double anti-damping system
Hydraulic parcking brake
Scrapers for cleaning the rollers
STANDARD KIT
Water tank, lighthouse, reversing signal, technical documentation and CE certificate
