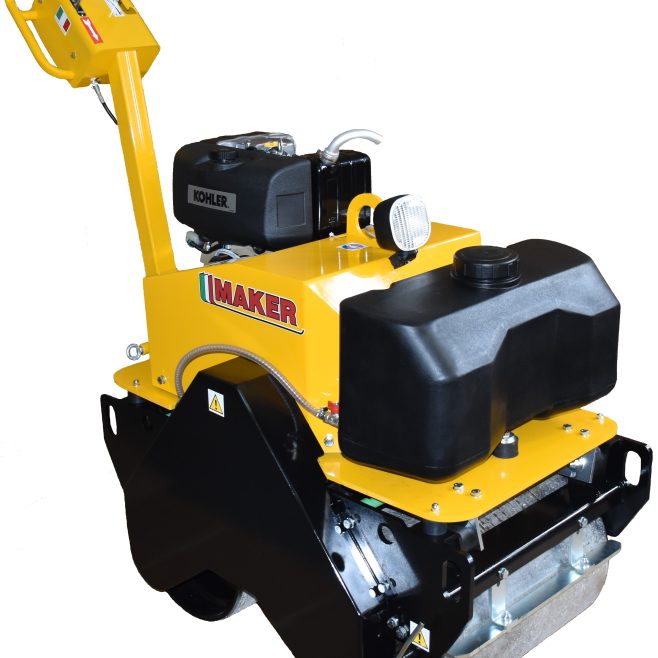

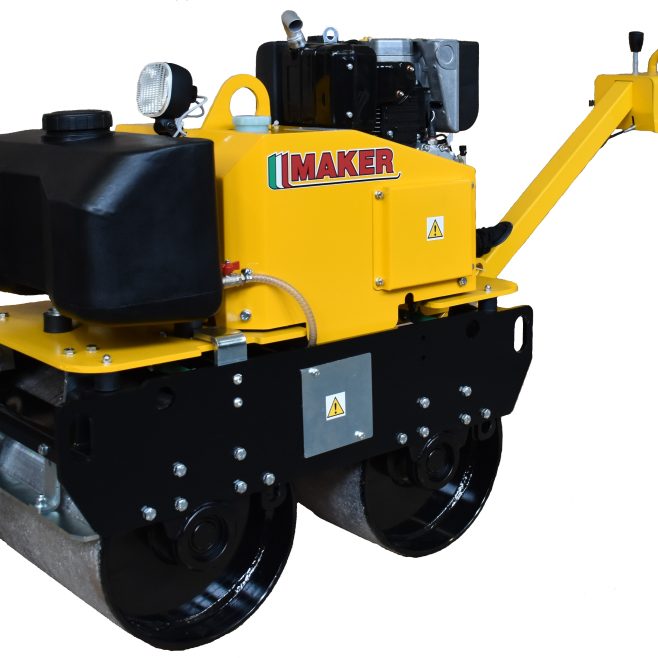

RVM600

Code Engine Type Power Weight (kg)

KD15 350 Kohler Diesel (recoil starter)

5,1 kW – 6,8 HP

 532

KD15 350 Kohler Diesel (electric starter)

5,1 kW – 6,8 HP

 554

L70V6CA1T1CAID Diesel Yanmar V (electric starter)

4,9 kW – 6,6 HP

 556
Data sheet

DESCRIPTION
Ideal for compacting any type of terrain (sand, gravel, stones, bituminous asphalts, etc.). The structure is simple and economical, but guarantees high performance. Very compact, it allows you to work parallel to the sidewalks and in small spaces. Its high centrifugal force makes it suitable to replace even heavier machines with the same performance and greater maneuverability.

Roller diameter (mm)402
Roller width (mm)560
Edge height (mm)230
Centrifugal force (kN)18
Frequency (Hz)75
Speed (forward gear) (km/h)0÷5
Speed (reverse gear) (km/h)0÷2,5
Depth (cm)30÷45
Water tank capacity (l)30
Sound emission level (dB)105
Dimensions (LxWxH in mm)1250x670x1650

Folding and cushioned steering tiller to reduce vibrations
Handle equipped with safety device, emergency lever, throttle lever and lever that operates progressive forward or reverse
Hydrostatic forward and reverse advancement
Belt vibration
Central attachment point plus 4 side eyelets for lifting and transport
Double anti-damping system
Manual parcking brake
Scrapers for cleaning the rollers

OPTIONAL
Lighting spot

STANDARD KIT
Water tank, technical documentation and CE
