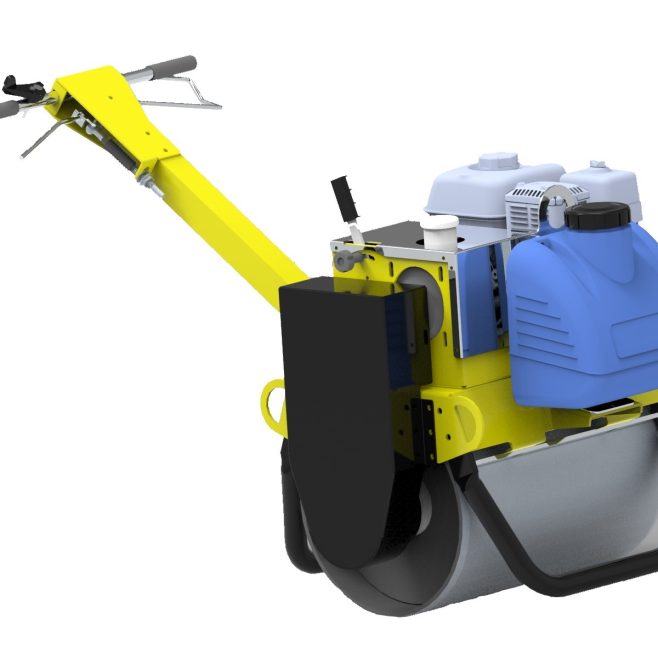

RVM150

Code Engine Type Power Weight (kg)

GX160 Honda petrol

3,6 kW – 4,8 HP

 170
Data sheet

DESCRIPTION
Ideal for compacting any type of terrain and asphalt. Construction is simple and inexpensive but guarantees high performance. Very compact, it allows you to work parallel to the sidewalks and in small spaces. Its high centrifugal force makes it suitable to replace even heavier machines with the same performance and greater maneuverability.

Roller diameter (mm)402
Roller width (mm)560
Edge height (mm)230
Centrifugal force (kN)10
Frequency (Hz)75
Speed (forward gear) (km/h)0÷5
Speed (reverse gear) (km/h)0÷2,5
Depth (cm)30÷45
Water tank capacity (l)14
Sound emission level (dB)105
Dimensions (LxWxH in mm)900x670x1560

Foldable drawbar to reduce bulk in shipments
Handle equipped with a lever safety device that operates progressive forward or reverse feed
4 lateral attachment points for lifting and transport
Safety locking lever
Front and rear rollover protection
High resistance polyethylene pipe for the distribution of water to the rollers
Scrapers for cleaning the rollers
STANDARD KIT
Water tank
Technical documentation and CE
