GPM
GPM - Image 2

GPM

Code Engine Type Power Weight (kg)

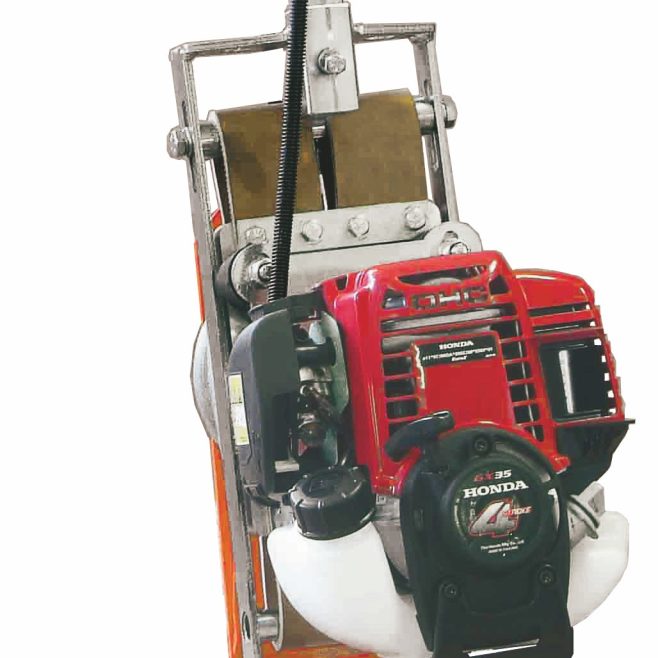

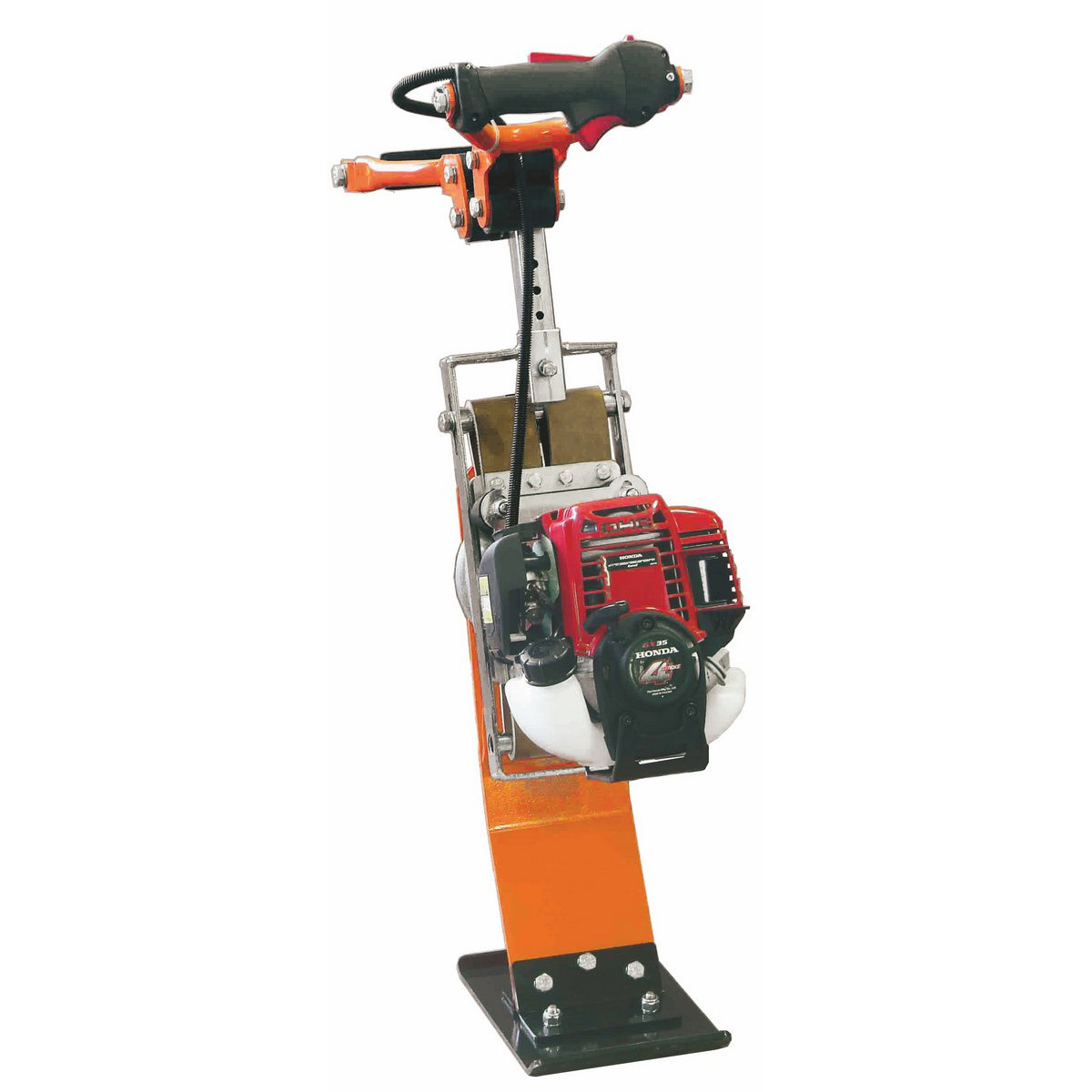

GX35 Honda petrol

1 kW – 1,34 HP

 27

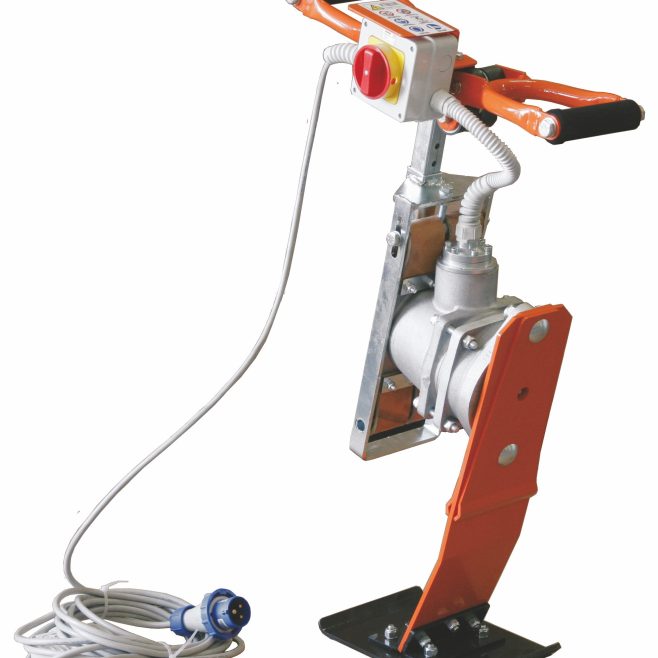

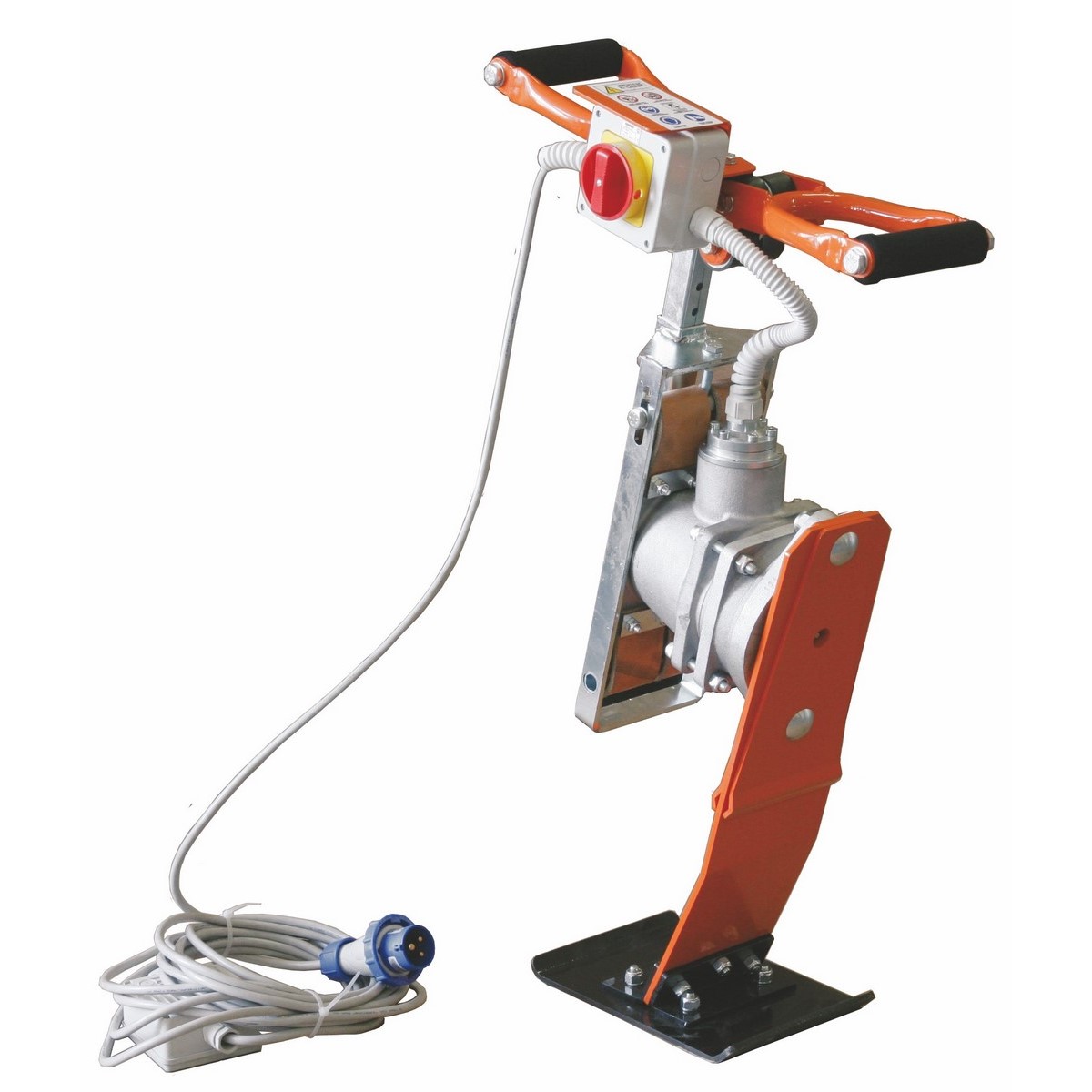

230V-50Hz Electric Single-Phase

0,43 kW – 0,5 HP

 27
Data sheet

DESCRIPTION
The GPM series vertical vibrating rammer in the petrol version, single-phase and three-phase is a very handy and powerful model, used on small and medium-sized surfaces. Ideal for work on pedestrian and cycle paths, for road repairs and restoration of asphalt or indoors. The low weight allows the operator to work without getting tired.

Knocker foot dimensions (LxW in mm)300x200
Centrifugal force (kN)4
Frequency. (Hz)47
Compaction depth (cm)20÷25
Advancement speed (m/min)15÷20
Sound emission level (dB)108
Dimensions (LxWxH in mm)440x200x870

Handle mounted on shock-absorbers to reduce vibrations
Engine mounted on canvas and shock-absorbers to reduce vibrations
OPTIONAL
Vibrating knife
Vibrating chisel
Small knocker foot (Lxl) 440×50 mm
Medium knocker foot (Lxl) 440×100 mm
STANDARD KIT
Technical documentation and CE certificate
