C520

Code Engine Type Power Weight (kg)

GXR120 Honda petrol

2,6 kW – 3,5 HP

80

L48 Yanmar Diesel

3,1 kW – 4,2 HP

87

1B20 Hatz Diesel

3,1 kW – 4,2 HP

87

DESCRIPTION

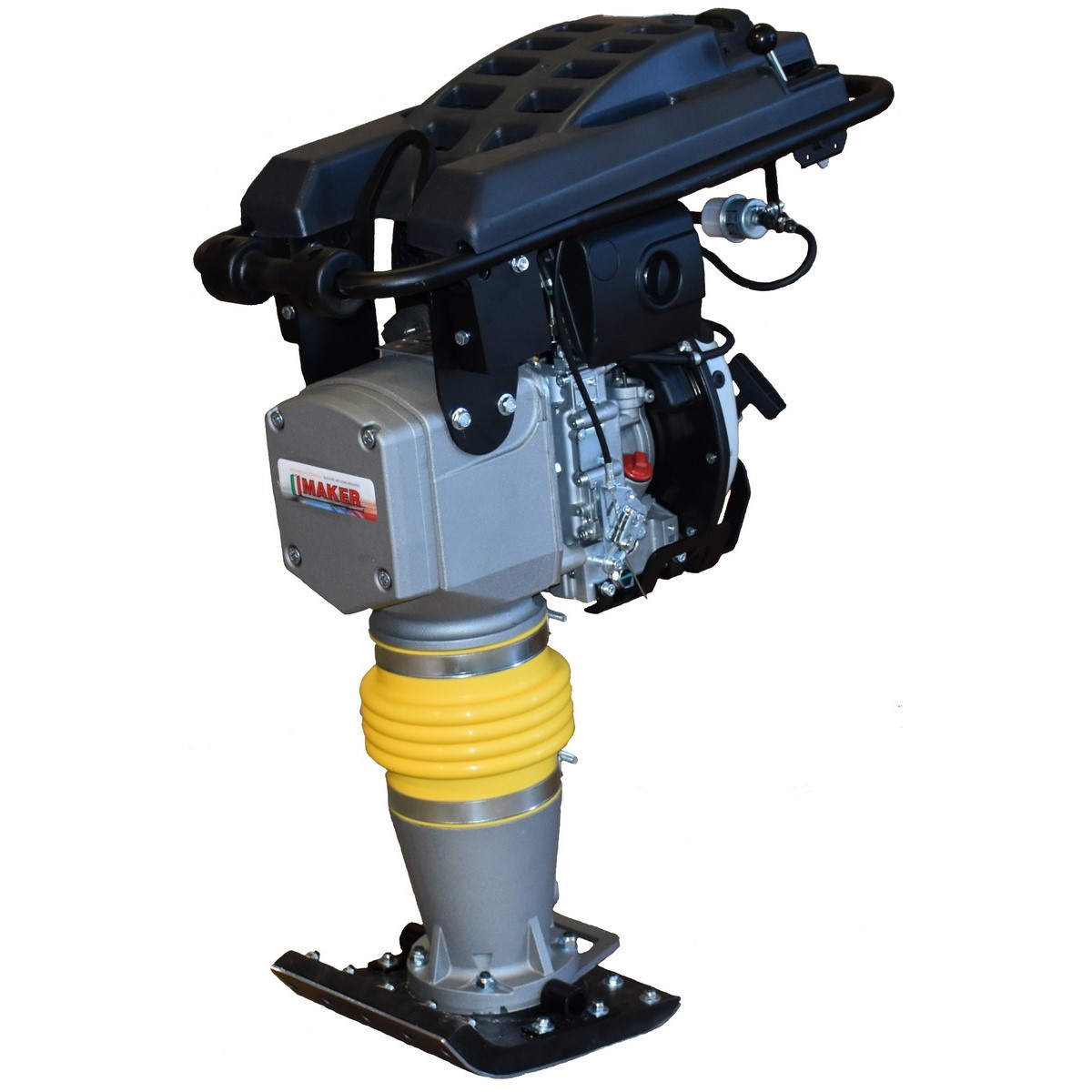

The vertical vibrating rammer finds its main use in all those soil compaction works where other machines cannot reach due to their larger size. It has a very sturdy and newly conceived structure that allows to obtain the maximum performance ensuring a long life without maintenance.

Plate dimensions (LxW in mm)330x285
Centrifugal force (kN)16
Stroke (mm)50÷75
Strokes per minute600÷700
Compaction depth (cm)50÷70
Advancement speed (m/min)15÷20
Sound emission level (dB)108
Dimensions (LxWxH in mm)630x500x1100

Cushioned engine guard to reduce vibrations complete with point for lifting
Automatic centrifugal clutch
Oil bath lubrication
OPTIONAL
Transport wheels kit Ø 260×85 mm
STANDARD KIT
Transport wheels kit, technical documentation and CE certificate
